- Type of Junction: Double Junction
- Measuring Range: 0.00 – 14.00 pH
- Temperature Range: -5°C to +105°C
- Resistance: ≤200 MΩ
- Reference Electrode: Ag-AgCl
- Electrolyte: 3.8M KCl
- Maximum Pressure: 10 bars
- Materials: Ryton; Teflon; Glass
- Thread: 3/4” NPT
- Cable Type: Low Noise Coaxial, Dual Shielded

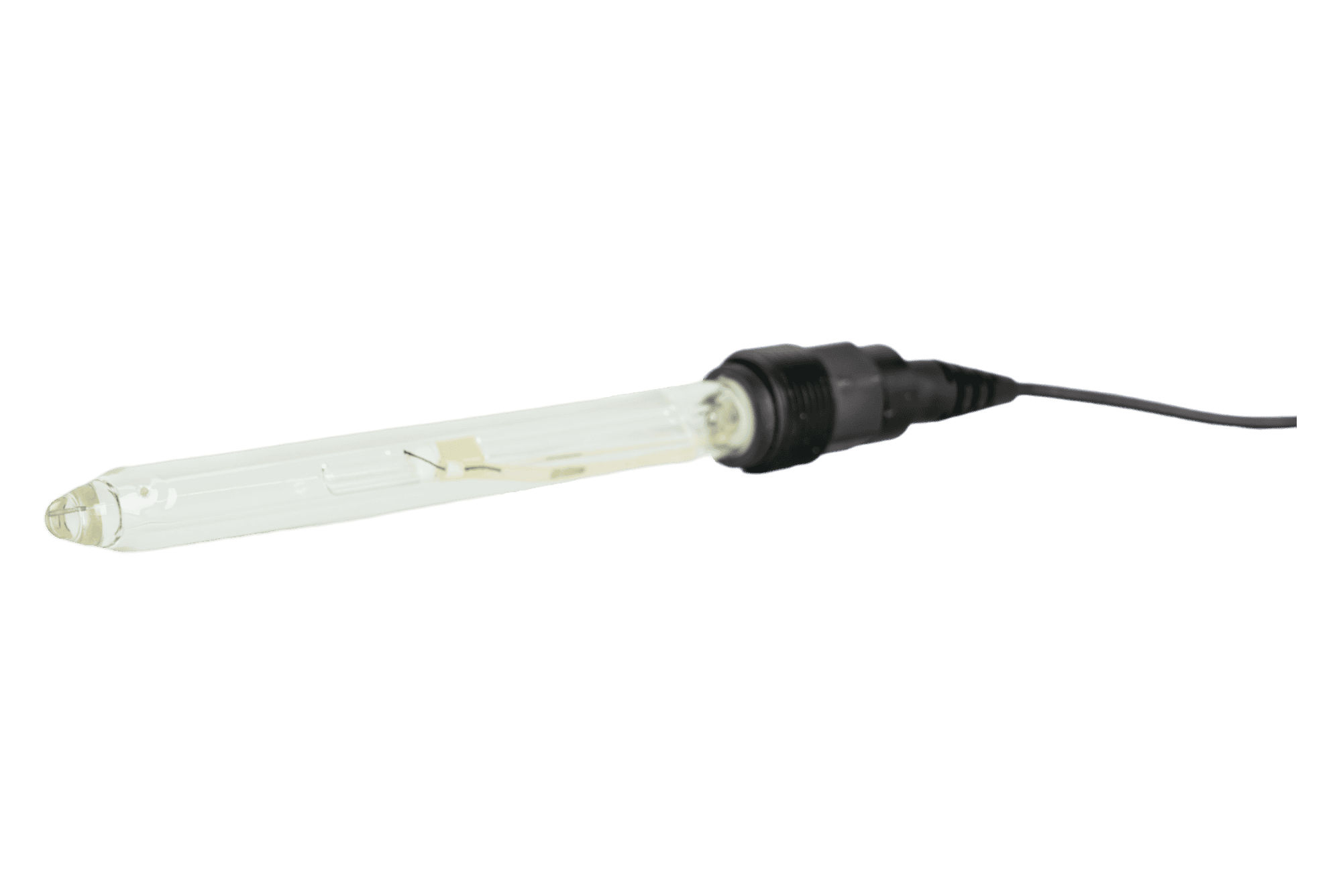

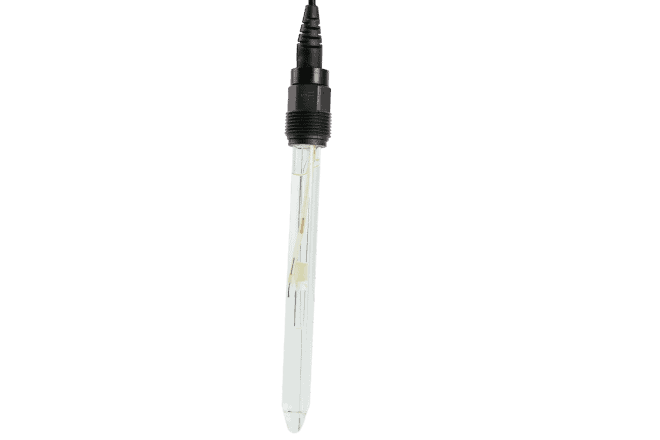

VodaSense E-Series – 12mm Glass Type – E-3303
VodaSense E-Series 12mm pH sensor is maintenance free sensor is designed for processes in the chemical industry with high pH values and for applications in the general and wastewater treatment.
The “H” type membrane glass provides a low alkaline error and stable measurement even at high temperatures. 2 high-performance ceramic diaphragms reduce the effect of flow potential during pipe mounting.
