- Type of Junction: Double Junction
- Measuring Range 2.00 – 12.00 pH
- Temperature Range: 0 – 60°C
- Maximum Pressure: 5 bar
- Membrane Resistance: ≤200 MΩ
- Reference Electrode: Ag-AgCl
- Electrolyte: 3.8M KCl
- Driftance: ≤0.02 pH / day
- Materials: ABS; Teflon; Glass
- Thread: 3/4” NPT
- Cable Type: Low Noise Coaxial, Dual Shielded

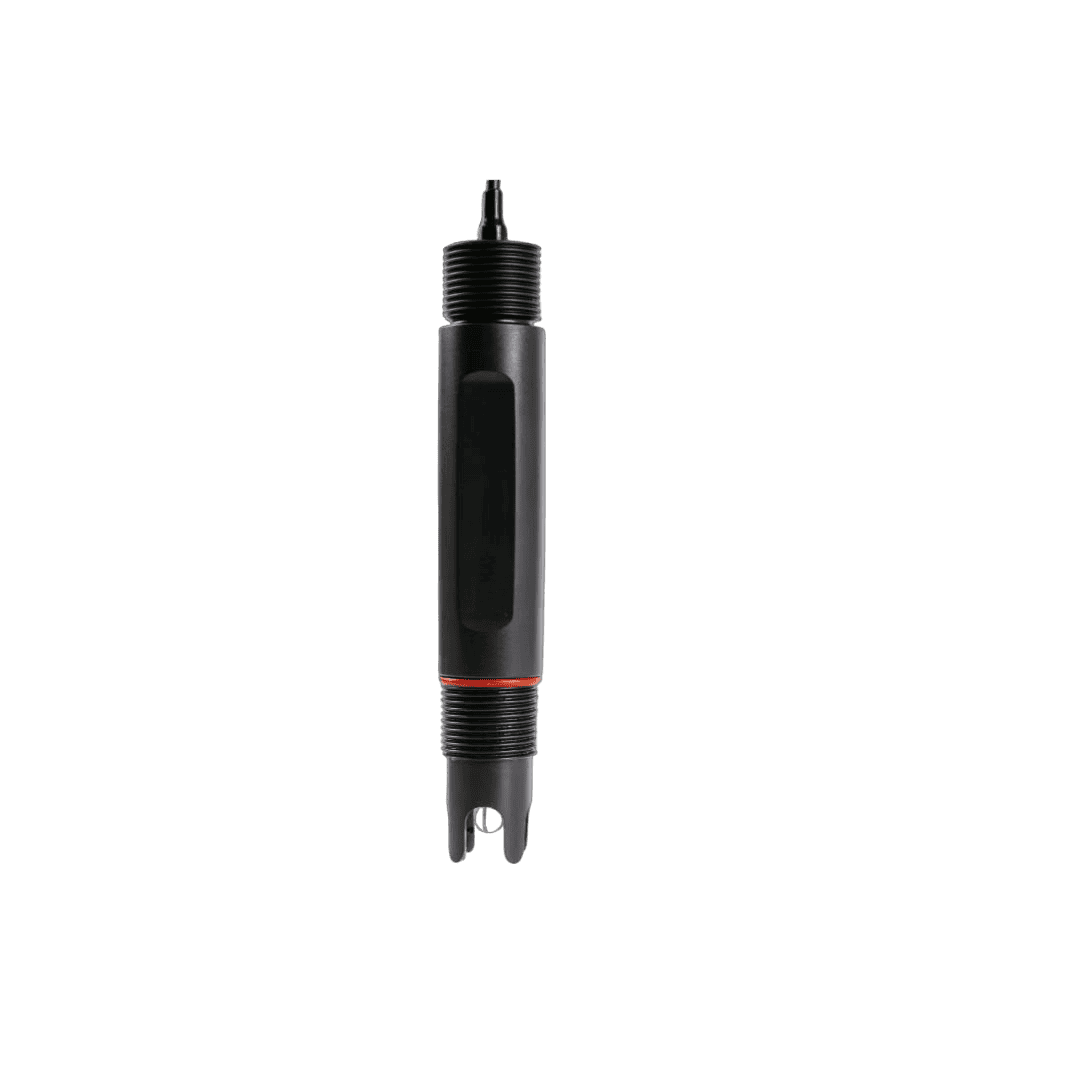

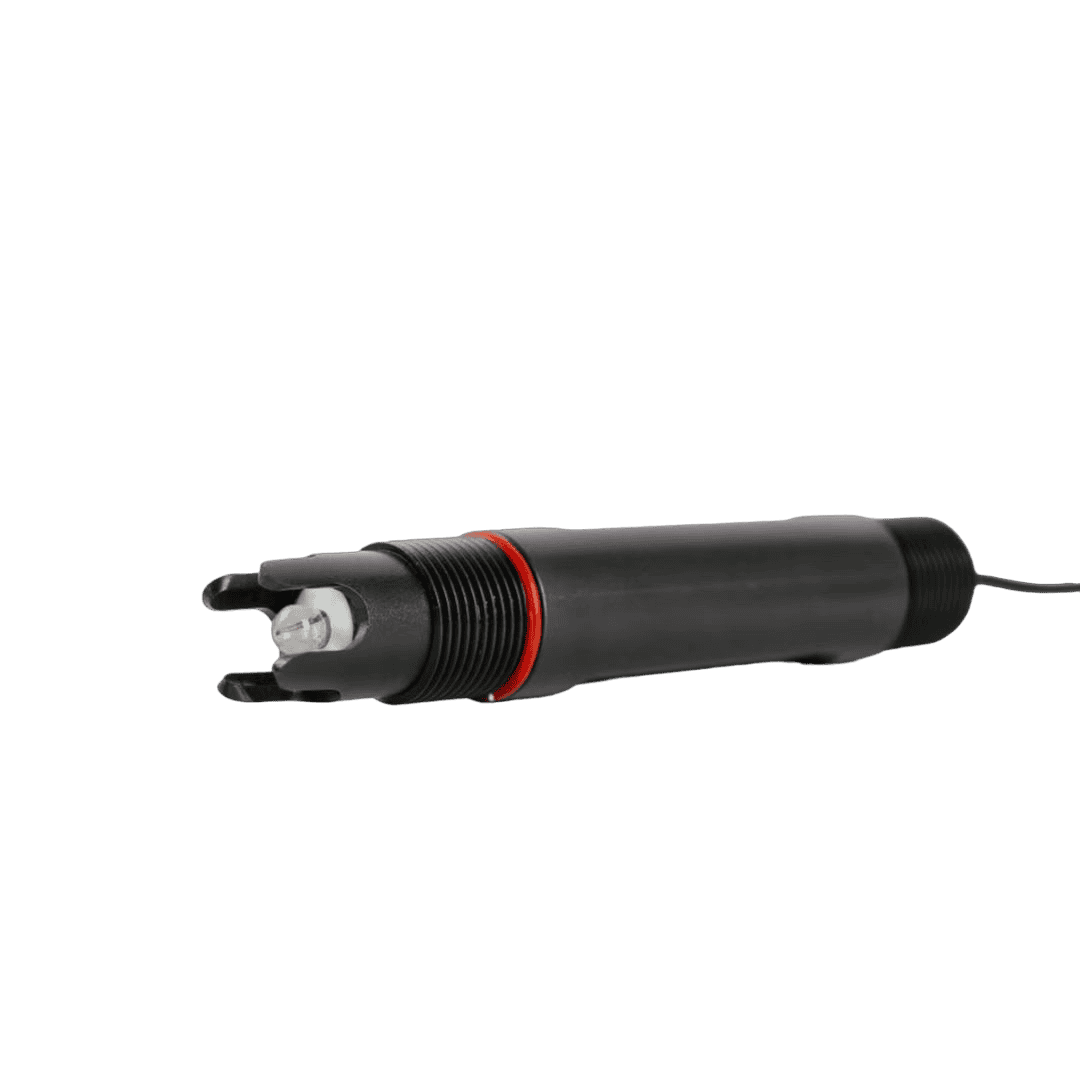

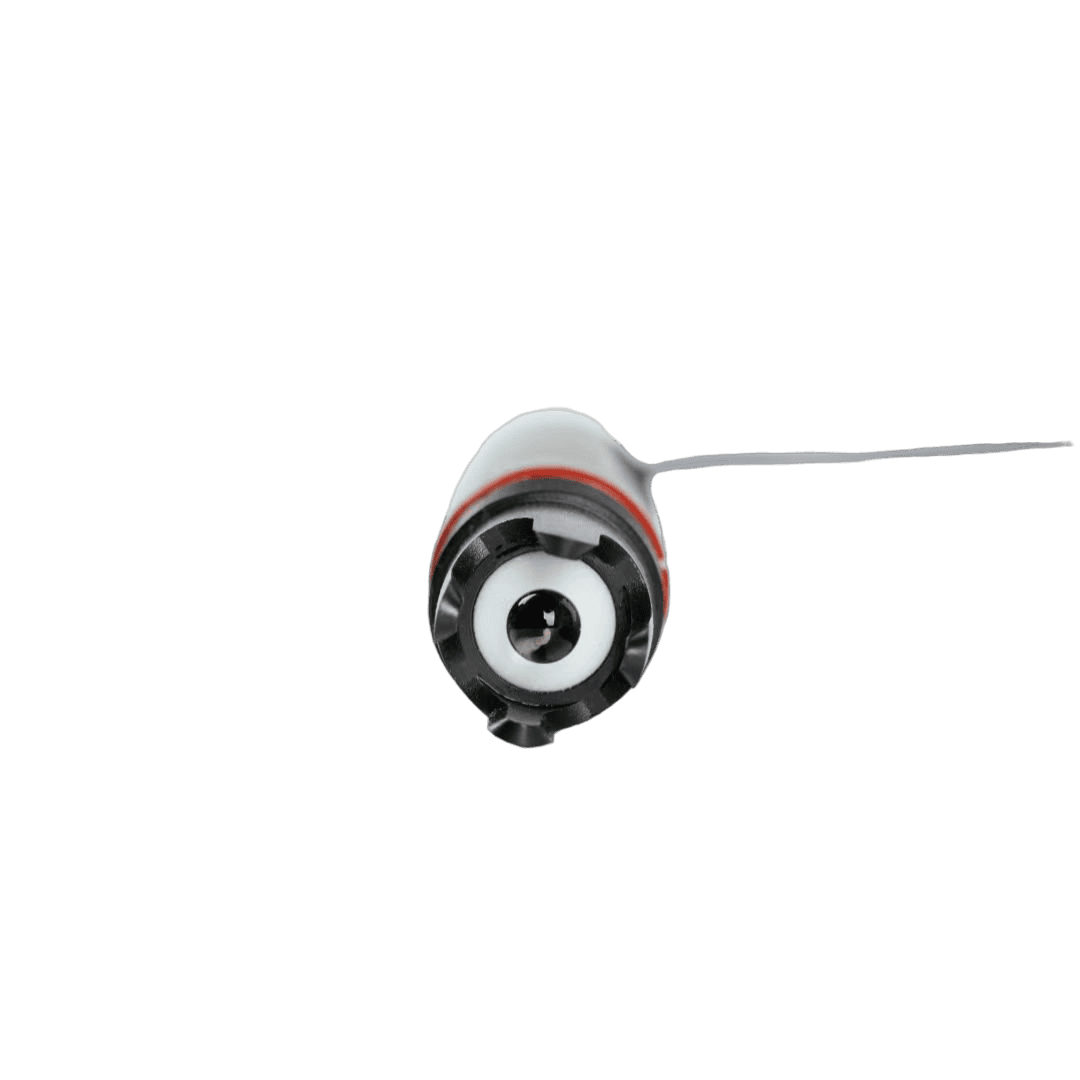

VodaSense P-Series – P-3505
Vodasense P-Series combination pH sensors are commonly used in the wastewater and potable water applications.
The P-Series sensors are built with gel-filled electrolyte which greatly reduce the possibilities of reference poisoning. Both sensors can be installed either in submersion or inline to the process. The sensor comes with or without a built-in temperature sensor upon
request.
