- Measuring Principle: Ion Selective (Potentiometric)
- Measuring Range: 0.02 – 2000 ppm ; Other ranges are upon request
- Resolution: 0.01 ppm
- Slope: -54 to -59 mV/decade @ 25°C
- Resistance at 25°C: < 2.5 Meg Ohm
- Endpoint Time: Typically, 10 to 30 seconds
- Interferences: Hydroxide Ions
- Temperature Range: 5 – 50°C
- pH Range: 2 – 8 pH
- Potential Drift: 2 mV per day
- Thread: ¾” NPT
- Body Material: ABS

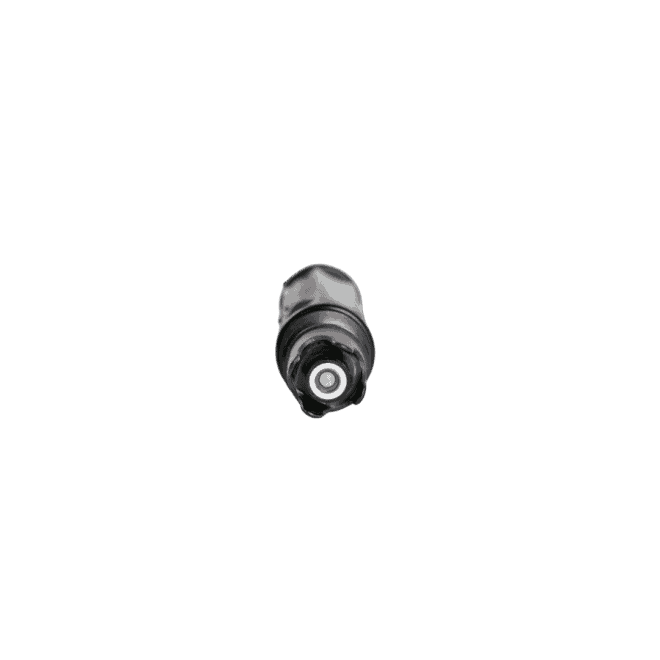

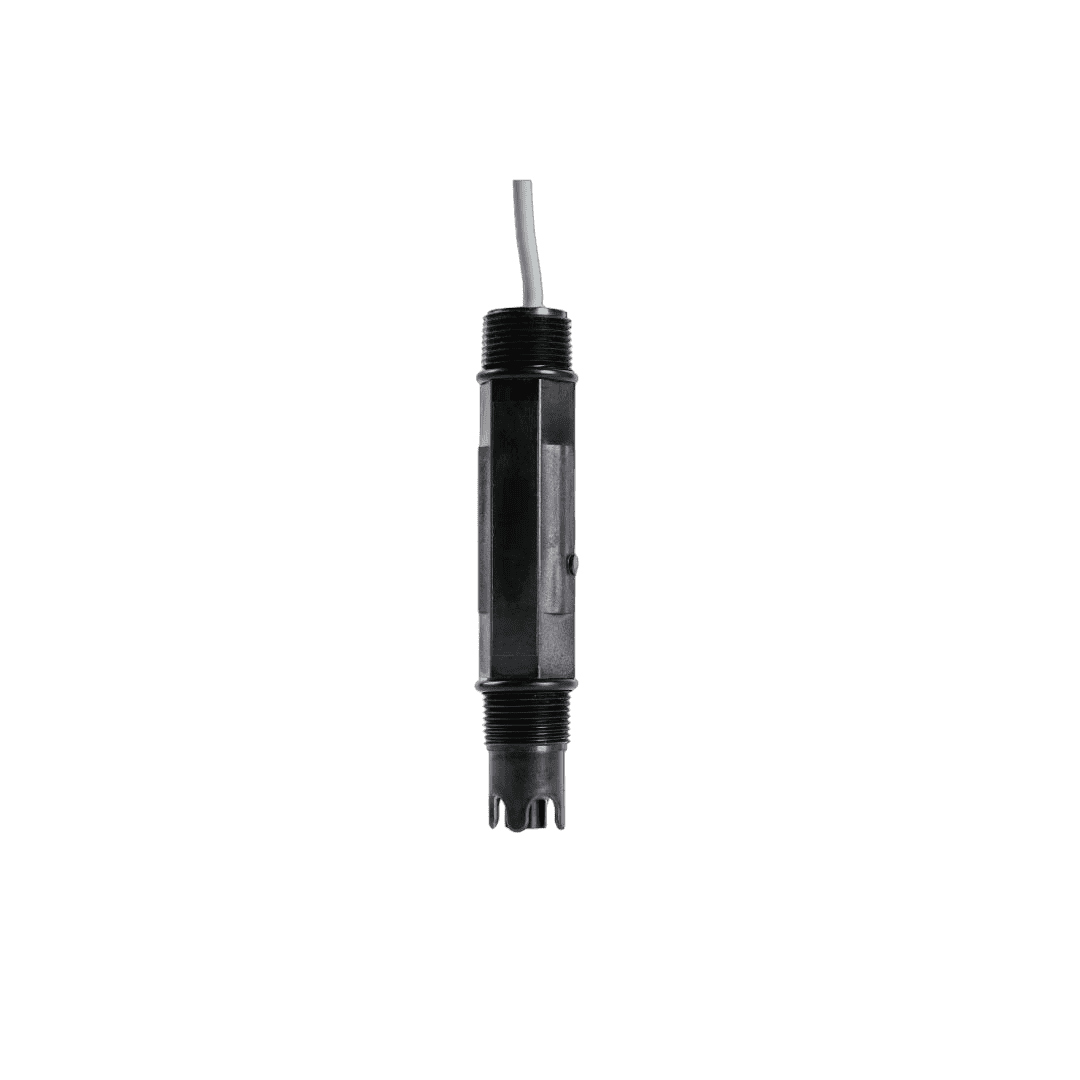

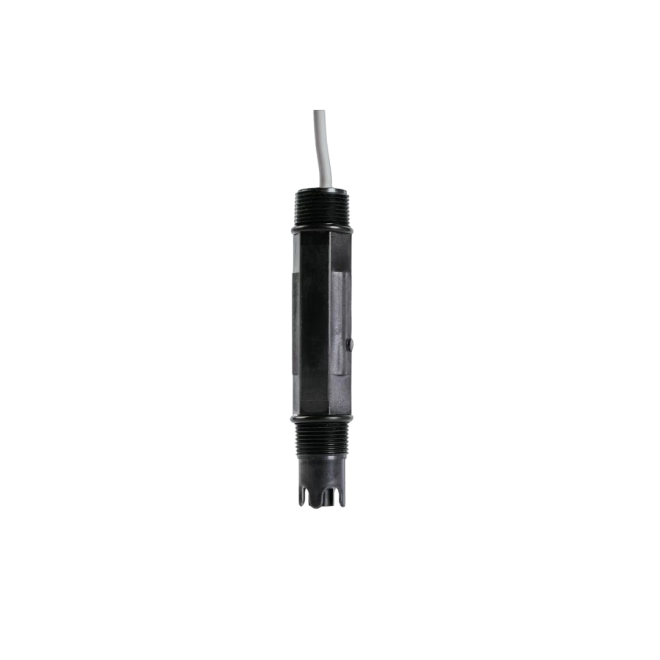

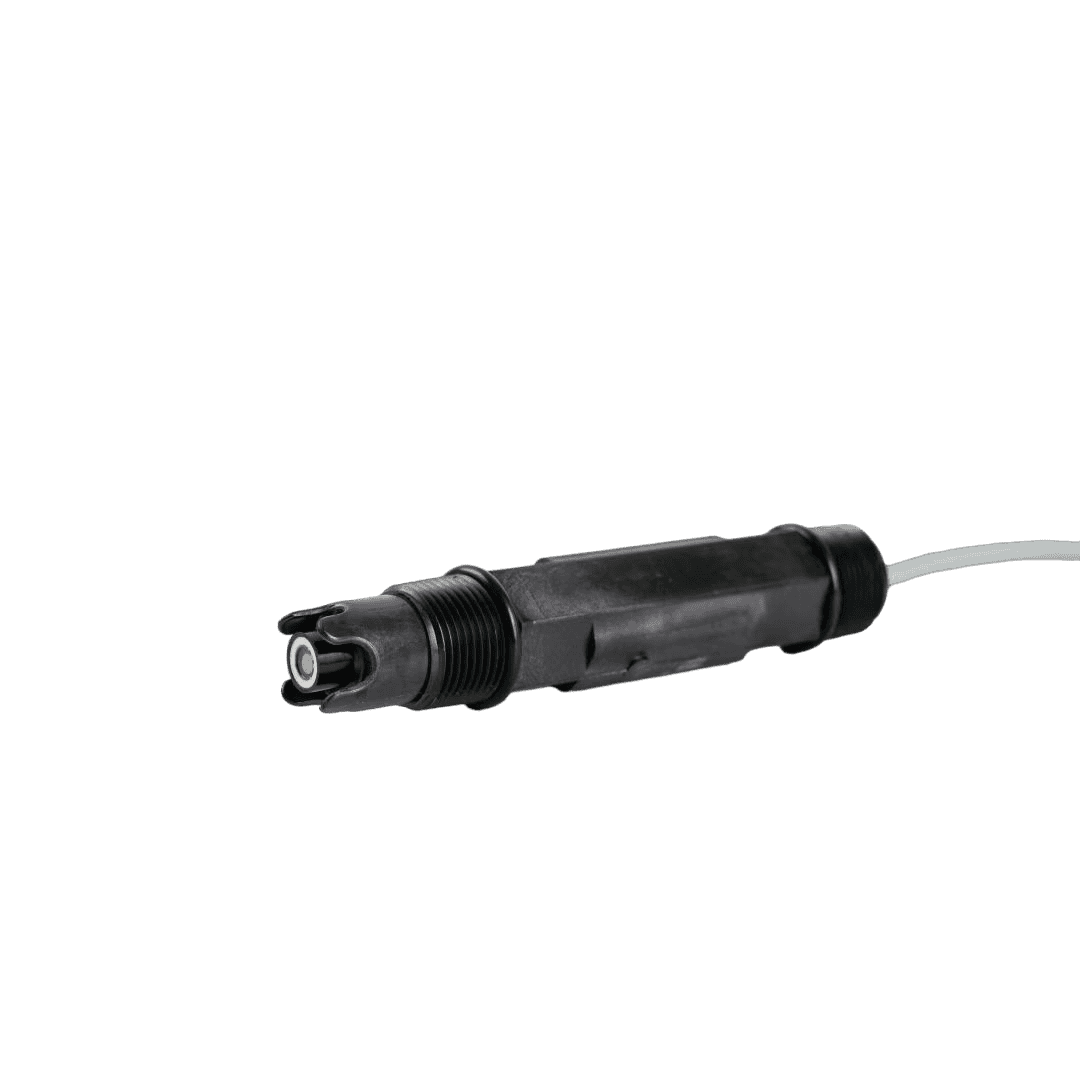

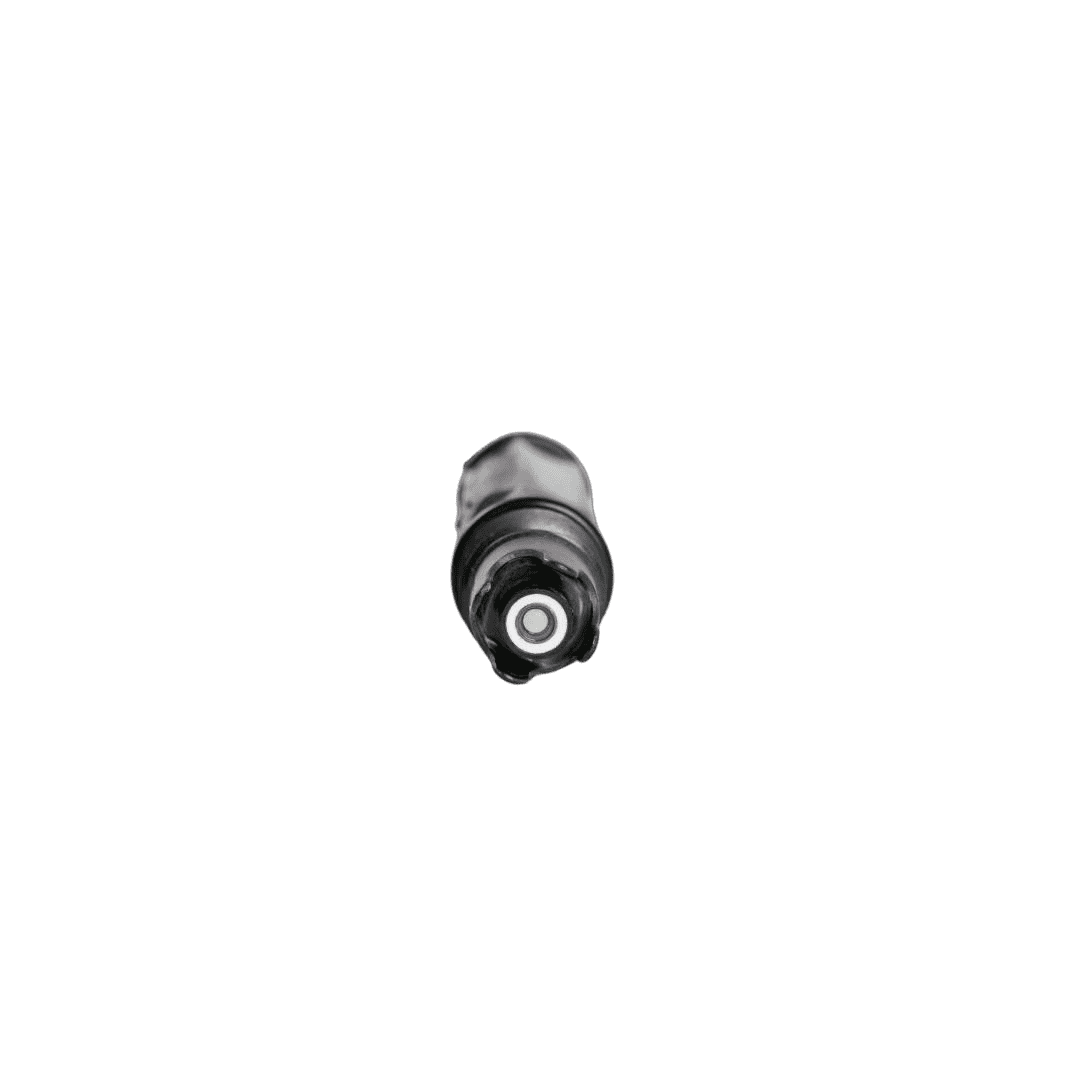

Ion Selective Electrode (ISE) – E-6802
Leadtec Fluoride Sensor is a potentiometric sensor working with Ion Selective Electrode (ISE) and a reference electrode supplying the milivolts signal (mV).
Using single crystal fim technology, the electrode potential is measured across a solid and polished crystalline membrane. It is
commonly known as “solid-state electrode”.
The sensor offers stable, continuous and real-time measurement without the reagents.
