- Parameter: %sat. ; mg/L
- Measuring Range: 0 – 200.0% sat. ; 0.00 – 20.00 mg/L
- Measuring Resolution: 0.1 ; 0.01
- Measuring Accuracy: ±0.2 ; ±0.2
- Temperature Compensation: NTC
- Temperature Range: 0 to 60°C
- Temperature Resolution: 0.1°C
- Temperature Accuracy: ±0.2°C
- Storage Temperature: -20°C to +70°C
- Pressure Range: 500 – 2100 mBar
- Salinity Range: 0 – 40.00 ppt
- Communication: Modbus RTU Protocol
- Baud Rate: 9600
- Protection Class: IP68
- Power Supply: 9 to 30 VDC, <7mA @ 24 VDC
- Weight: 1 kg
- Material: POM & Stainless Steel 316L
- Cable Length: 7 m; Other ranges are upon request

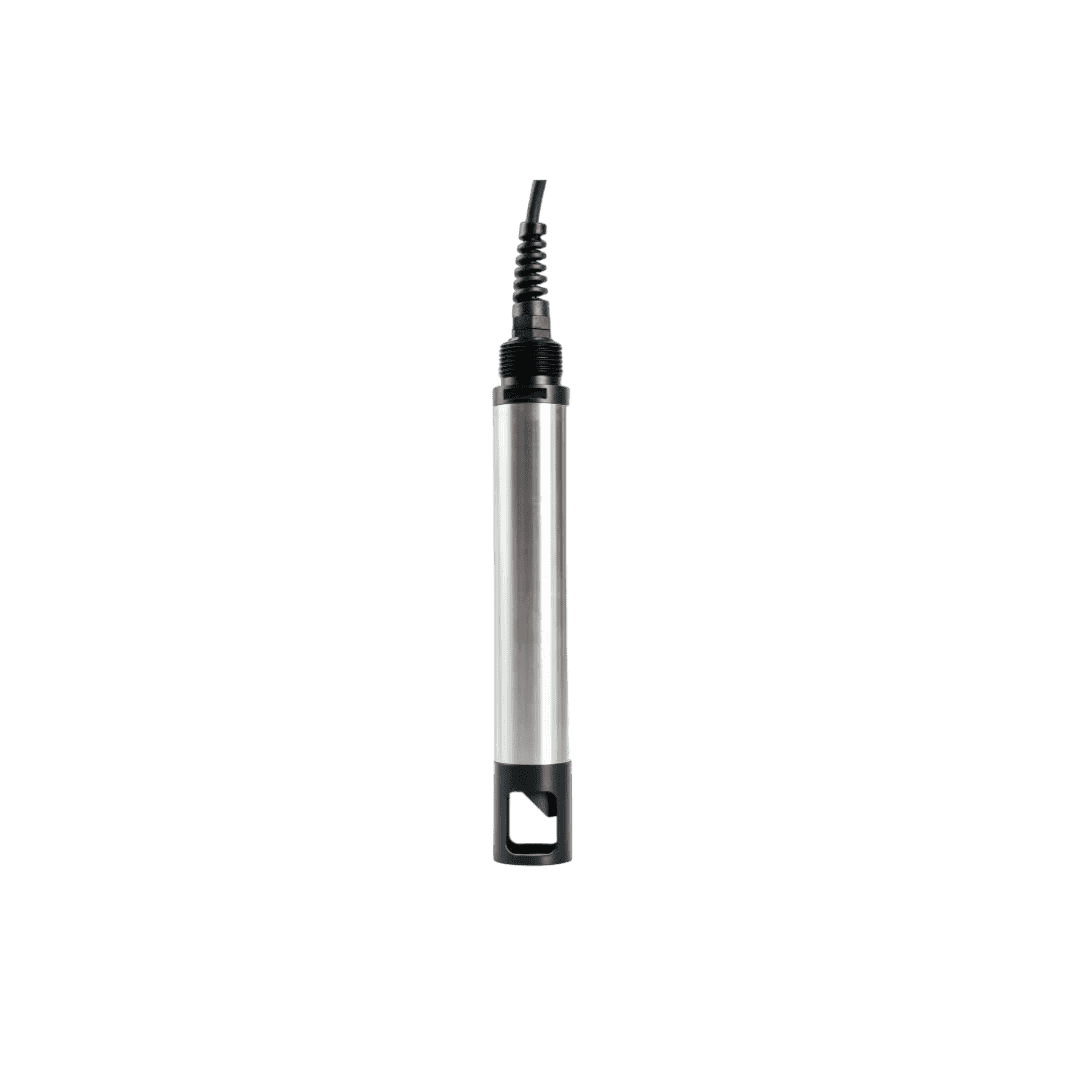

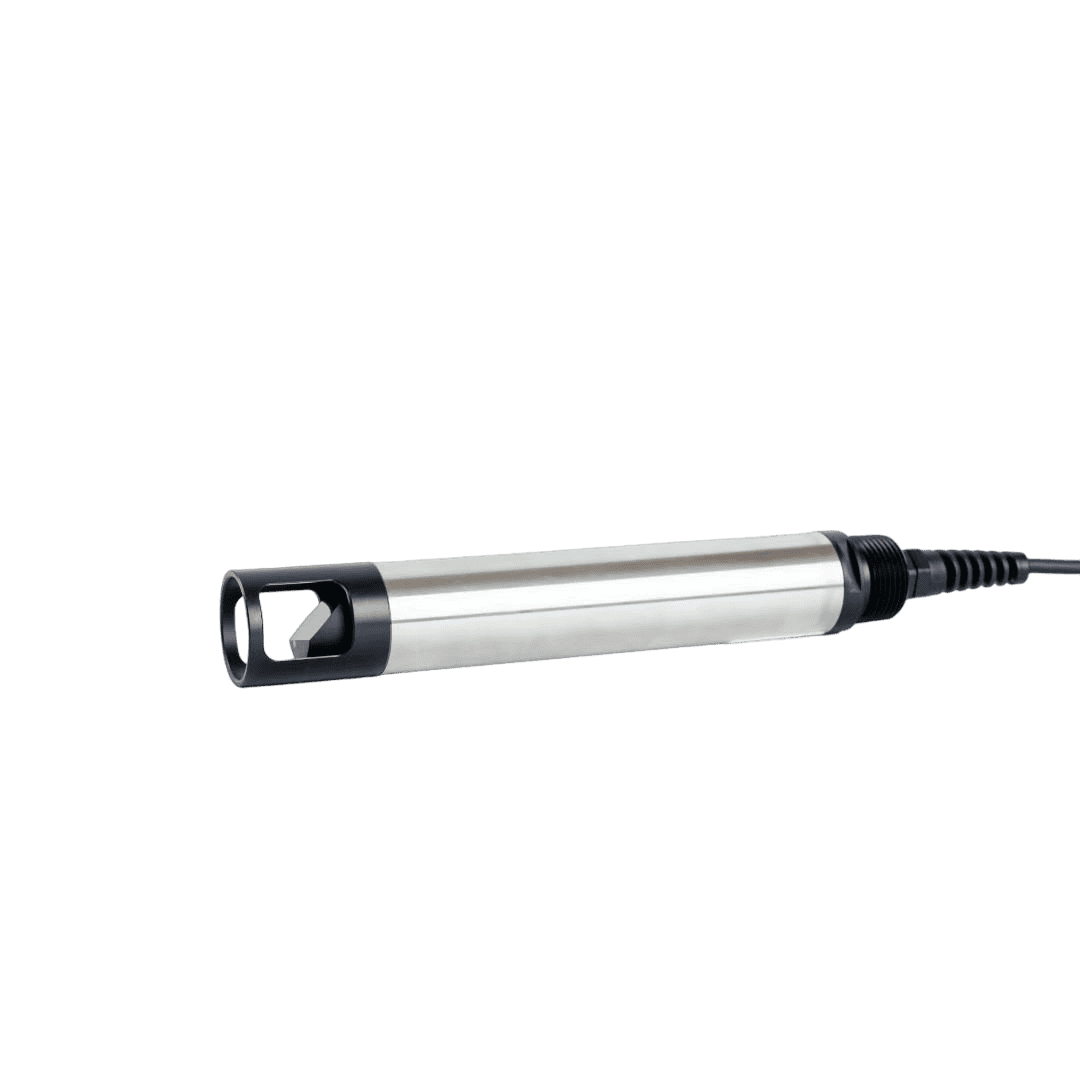

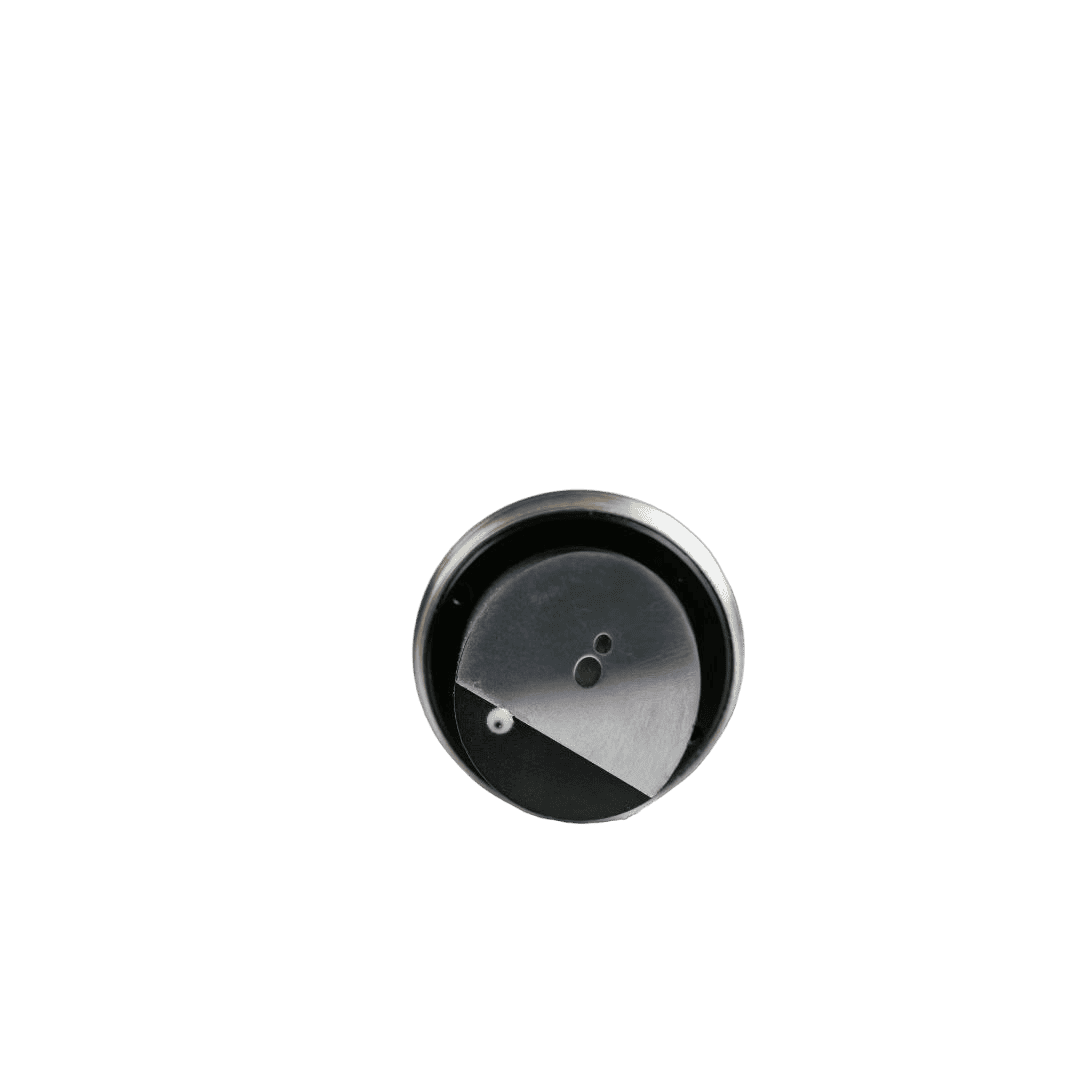

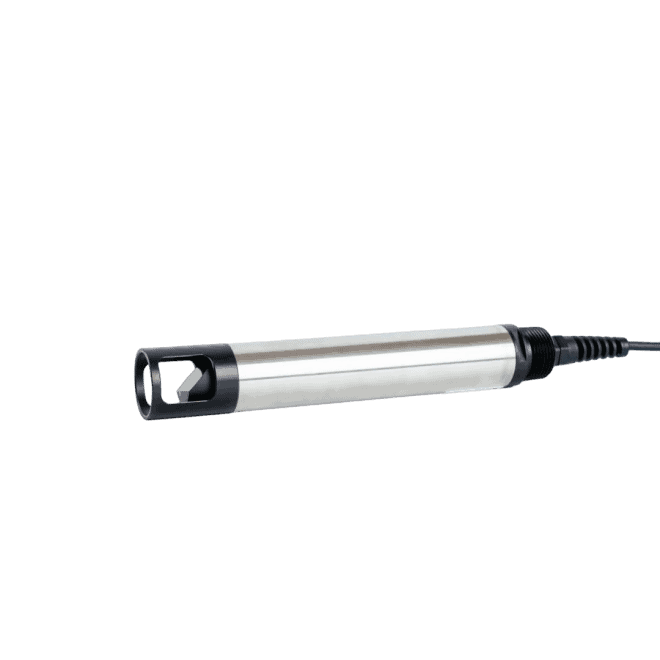

Digital Optical DO – MODO
Leadtec M-Series Digital Sensor – Optical Dissolved Oxygen is our state of the art digital sensor which able to provide a seamless remote monitoring for you.
Thanks to the Modbus RS485 protocol, the M-Series sensor s can connect to all RS 485 devices commonly used (Datalogger, PLC , Remote Sy st em, etc The sensors can even connect to our Leadtec M6000 Controller.
Each sensor was designed in such a way to cover every ranges of measurement and application, from the cleanest ultrapure water, smart fertigation to remote river quality monitoring.
